Shot Blasting Machine Wear Parts and Liners
Shot blasting machine wear parts protect the blasting chamber and high-impact areas from abrasive erosion. Xindong supplies liner plates, guard plates, chamber liners and custom wear parts with material, thickness, hole position and drawing confirmation for better fit and service life.
Overview: shot blasting wear parts include chamber liners, side plates, top plates, bottom liners, hopper liners, guard plates and custom protection parts. Accurate quotation depends on thickness, material request, hole positions, drawings, old part photos, quantity and machine working condition.
Wear parts range
Wear parts used in shot blasting chambers

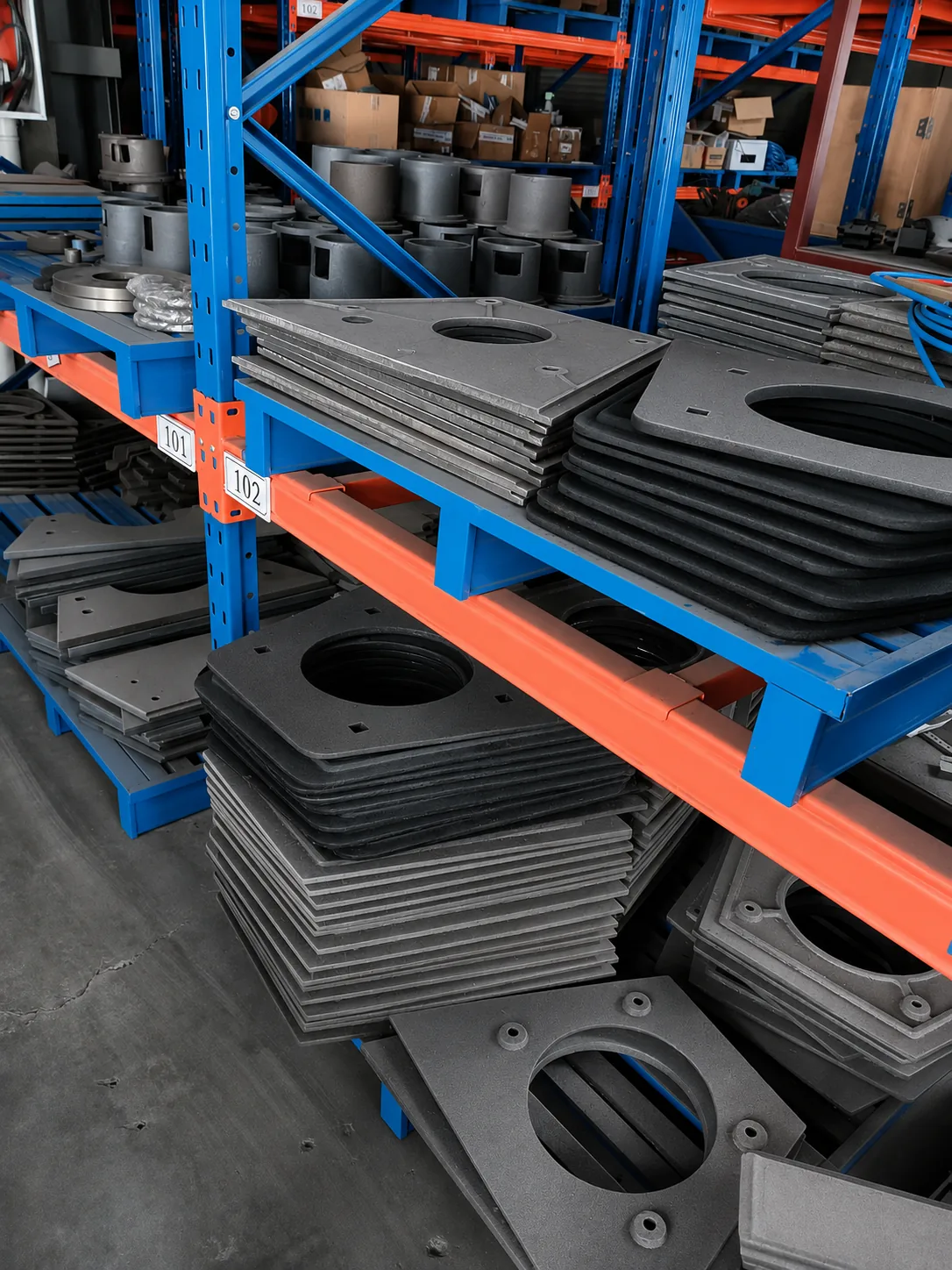

Chamber liners
- Side liners
- Top liners
- Bottom liners
- Hopper liners
Protection parts
- Guard plates
- Door protection plates
- Outlet protection plates
- Impact zone plates
Custom parts
- Drawing-based plates
- Sample-based replacements
- Non-standard hole positions
- Machine rebuild parts
Measurement
How to measure worn liners for replacement

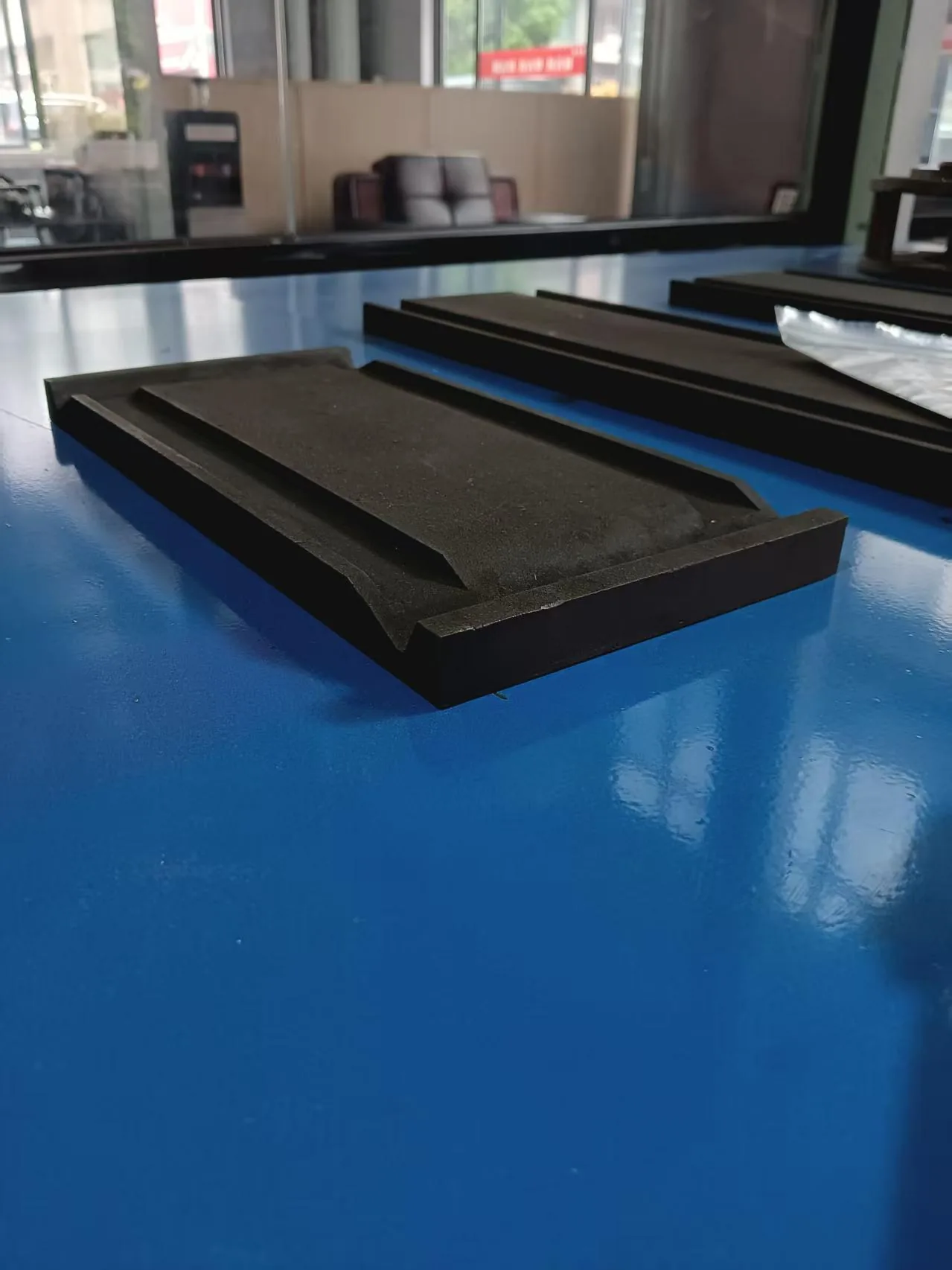

Liners and wear plates are often simple-looking parts, but wrong hole positions or thickness can stop installation. For old machines or non-standard chambers, photos of the installation area are as useful as dimensions.
| Basic size | Length, width, thickness, bend angle if any |
|---|---|
| Hole position | Hole diameter, center distance, edge distance and mounting direction |
| Material request | Known material, previous wear issue, abrasive impact and working position |
| Visual proof | Old part photos, installed position photos and drawing or sketch if available |
Custom manufacturing
Custom wear parts from drawings or samples
For older machines, modified chambers or special working areas, a standard catalog part may not fit. Xindong can review custom wear part requirements based on drawings, samples, old part photos, measured dimensions and expected abrasive impact.
Send proof
Drawing, sample, old part photos or installation area photos.
Confirm dimensions
Thickness, length, width, holes, bends and mounting direction.
Confirm working condition
Abrasive impact, working zone, wear problem and usage intensity.
Quote and pack
Quantity, destination and packing method are confirmed before shipment.
FAQ
Wear parts and liners FAQ
What liner plates are used in shot blasting machines?
Common liner plates include side liners, top liners, bottom liners, hopper liners, guard plates and other chamber protection parts.
Which material is better for wear plates?
Material should be selected according to abrasive impact, part location, wear condition and buyer requirements. Drawings or old part photos help confirm options.
Can you produce chamber liners from drawings?
Yes. Chamber liners and wear plates can be reviewed according to drawings, samples, hole positions, thickness and material requirements.
What dimensions are needed for a liner quote?
Provide length, width, thickness, hole positions, bend details if any, material request, quantity and photos of the installation area.
How do I prevent wrong hole positions or misfit parts?
Send drawings, measured dimensions, hole center distances, installation photos and old part photos before quotation and production.
Liner RFQ
Send liner drawings, thickness, material request and hole positions
For unknown material or old equipment, send photos of the worn liner and its installed position.
